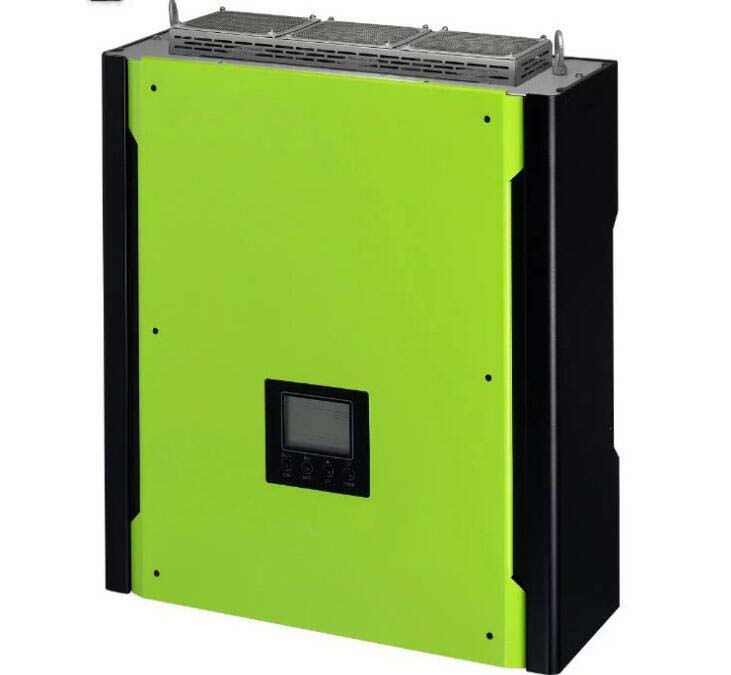

mppt hybrid inverter 1500w hybrid on off grid inverter for Solar power inverter

1. Self-consumption and feed-in to the grid Programmable supply priority for PV, Battery or Grid

2. User-adjustable battery charging current suits different types of batteries

Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup

3. Built-in Timer for various mode of on/off operation

4. Multiple communication for USB, RS-232, Modbus and SNMP Monitoring software for real time status display and control Custom-made firmware by ODM contract

5. Parallel operation up to 6 units

Quick Inquiry

Model

HYG 1533

PHASE

3-phase in / 3-phase out

MAXIMUM PV INPUT POWER

22500W

RATED OUTPUT POWER

15000 W

MAXIMUM CHARGING POWER

15000 W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 900 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

400 VDC ~ 800 VDC

Number of MPP Trackers / Maximum Input Current

2 / A: 37.65A; B: 18.6A

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 264.5VAC per phase

Nominal Output Current

21.7A per phase

Power Factor

> 0.99

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage

120 - 140 VAC per phase / 180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

40 A

PV INPUT (DC)

Maximum DC Voltage

900 VDC

MPP Voltage Range

350 VDC ~ 850 VDC

Number of MPP Trackers/Maximum Input Current

2 / A: 37.65A; B: 18.6A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Waveform

Pure Sinewave

BATTERY MODE OUTPUT (AC)

91%

HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

720 VDC / 900 VDC

Start-up Voltage / Initial Feeding Voltage

320 VDC / 350 VDC

MPP Voltage Range

350 VDC ~ 850 VDC

Number of MPP Trackers/Maximum Input Current

2 / A: 37.65A; B: 18.6A

GRID OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Output Voltage Range

184 - 264.5 VACper phase

Nominal Output Current

21.7A per phase

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140 VAC per phase / 180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC per phase

Maximum AC Input Current

40 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

230 VAC (P-N) / 400 VAC (P-P)

Efficiency(DC to AC)

91%

BATTERY & CHARGER

Nominal DC Voltage

48 VDC

Maximum Charging Current
