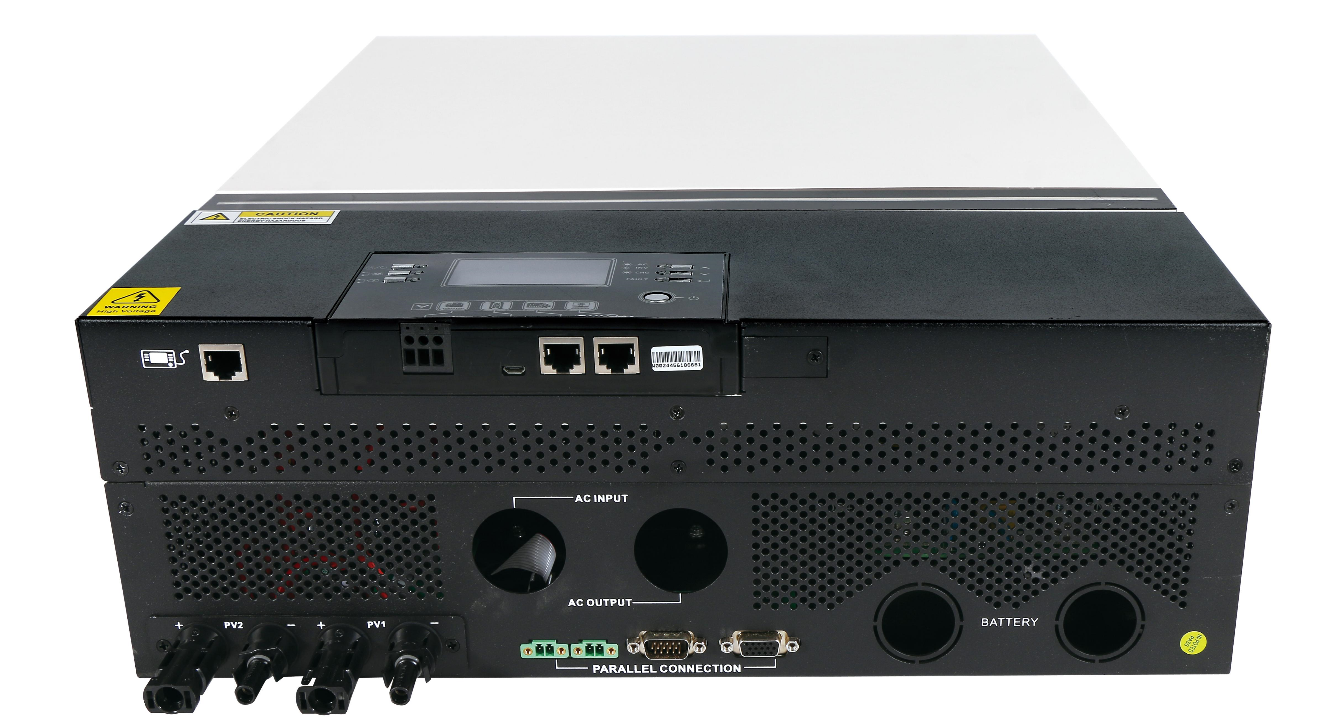

high frequency off grid 11kw built-in wifi removeable screen

1.Dual outputs, for smart load management
2.Maximum PV input current increases to 27A
3.Wide PV input voltage range 90VDC ~ 450VDC
4.Status indication with RGB lights
5.Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
6.Supports USB On-the-Go function
7.Reserved communication port for BMS (RS485, CAN-BUS or RS232)
8.Replaceable fan design for ease of maintenance
9.Battery independent design
10.Selectable high power charging current
11.Compatible to Utility Mains or generator input
12.Built-in anti-dust kit
13.Optional DC output for DC fan, LED bulb, router and so on (only for 8K model)
14.Parallel operation with 6 units
Quick Inquiry
Model MAX 11000
Rated Power 11000VA/11000W
Parallel Capability YES,6 units
Voltage 230 VAC
Select-able Voltage Range 170-280VAC (For Personal Computers)
90-280VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Power 22000VA
Efficiency (Peak) 93%
Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform Pure sine wave
DC Voltage N/A
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar charger type MPPT
Max PV Array Power 11000W (5500W x 2)
MPP Range @operating Voltage 90 ~ 450 VDC
Max PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 27A x 2(MAX 40A)
Max Solar Charge Current 150A
Max AC Charge Current 150A
Max Charge Current 150A
Dimension, D x W x H (mm) 147.4 x 432.5 x 553.6
Net Weight (kgs) 18.4
Communication Interface USB/RS232/RS485/WiFi/Dry-contact
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Compliance Safety CE
