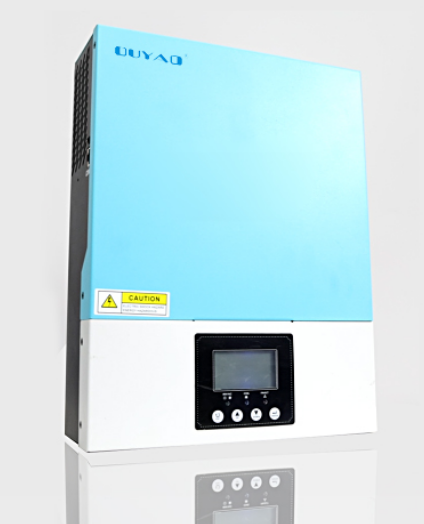

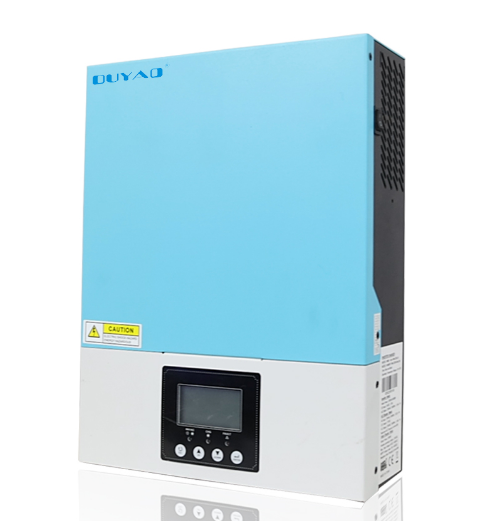

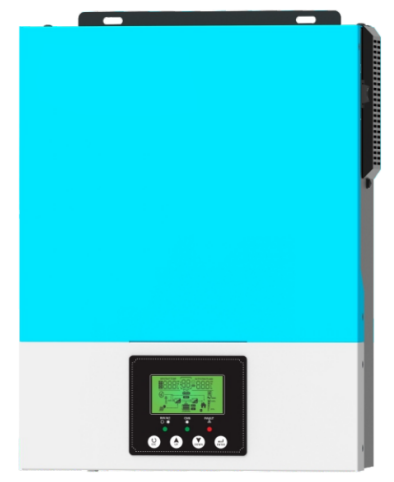

1.Pure sine wave solar inverter
2.Output power factor 1.0
3.Wifi & GPRS available for IOS and android
4.Built-in 80A MPPT solar charger
5.High PV input voltage range ( 90-450VDC)
6.Built-in anti-dusk kit for harsh environment
7.Smart battery charge design to optimize battery life
8.Meet the rich customize needs of customerse
9.Compatibe with lithium battery
10.Solar energy is provided directly to the load first
| Model | HY1512M | HY3022MN-L |
| Rated Power | 1500VA/1500W | 3000VA/3000W |
| AC INPUT | ||
| Voltage | 230 VAC | |
| Select-able Voltage Range |
170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
| Surge Power | 3000VA | 6400VA |
| Efficiency (Peak)PV to INV | 98% | |
| Efficiency (Peak)Battery to INV | 94% | |
| Waveform | Pure sine wave | |
| Transfer Time | 10ms(For Personal Computers), 20ms(For Home Appliances) | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12 VDC | 24 VDC |
| Floating Charge Voltage | 13.5VDC | 27 VDC |
| Overcharge Protection | 16VDC | 33VDC |
| Maximum AC Charge Current | 60A | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 2000W | 3000W |
| MPPT Range @ Operating Voltage | 90-430VAC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 348 x 270 x 95 | |
| Net Weight (kgs) | 4 | 5 |
| Communication Interface | RS232/GPRS/WIFI | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
