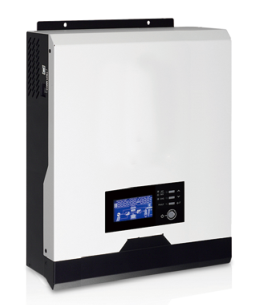

1.Pure sine wave solar inverter
2.Output power factor 1
3.Selectable high power charging current
4.Wide DC input range
5.Selectable input voltage range for home appliances and personal computers
6.Configurable AC/Solar input priority via LCD setting
7.Compatible to AC mains or generator power
8.Auto restart while AC is recovering
| Model | HY1012M |
| Rated Power | 1000VA/1000W |
| INPUT | |
| Voltage | 230 VAC |
| Select-able Voltage Range | 170-280VAC (For Personal Computers) |
| 90-280VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 2000VA |
| Efficiency (Peak) | 90%-93% |
| Transfer Time | 10ms(For Personal Computers), 20ms(For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.5 VDC |
| Overcharge Protection | 16 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar charger type | MPPT |
| Max PV Array Power | 500 W |
| MPP Range @operating Voltage | 17 ~ 80 VDC |
| Max PV Array Open Circuit Voltage | 102VDC |
| Max Solar Charge Current | 40A |
| Max AC Charge Current | 20A |
| Max Charge Current | 60A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 88 x 225 x 320 |
| Net Weight (kgs) | 4.4 |
| Communication Interface | USB/RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
